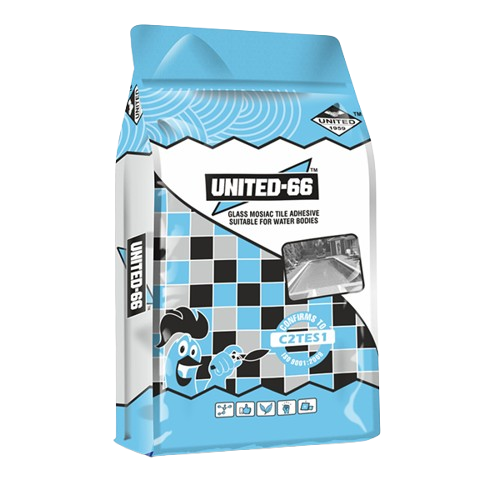

UNITED - 66 Flex Glass Mosiac Tile Adhesive

United-66 Glass Mosaic Tile Adhesive is a white cement-based, polymer-modified adhesive specifically designed for glass mosaic applications in internal and external areas, including submerged conditions. With excellent waterproofing properties, superior adhesion, and slip resistance, it is an ideal choice for water bodies and green buildings. Low VOC content. Available in White, 20Kg bags, with PAN India supply.

High polymer modified adhesive for fixing tiles Glass Mosiac Tiles on Floor & Wall

United-66 Glass Mosaic Tile Adhesive – High-Performance Adhesion for Glass Mosaics

United-66 is a premium-grade, white cement-based polymer-modified tile adhesive, specifically formulated for glass mosaic applications. This high-strength adhesive is designed to withstand submerged conditions, making it perfect for swimming pools, fountains, spa areas, bathrooms, and water bodies.

Its excellent waterproofing properties and superior adhesion ensure long-lasting performance in both interior and exterior applications. With enhanced slip resistance and longer pot life, United-66 allows for precise and easy application, reducing material wastage and installation time.

Ideal for green buildings, it features low VOC content, making it an environmentally friendly option. The ready-to-mix formula requires only the addition of water, simplifying the application process while maintaining high bonding strength and durability.

Key Features & Benefits:

✔ Specialized for Submerged Conditions – Ideal for swimming pools, fountains, and water bodies.
✔ Superior Waterproofing – Protects against moisture and water damage.
✔ Excellent Bonding Strength – Ensures long-lasting adhesion for glass mosaics.
✔ Slip Resistance with Longer Pot Life – Provides easy application with precise alignment.
✔ Eco-Friendly & Low VOC – Safe for green building projects.
✔ Ready-to-Mix & Easy to Use – Requires only water for preparation.

Ideal Applications:

✔ Glass Mosaic Tile Installation (Interior & Exterior)
✔ Swimming Pools, Fountains & Water Bodies
✔ Spas, Bathrooms, Showers, and Wet Areas
✔ Kitchen Backsplashes and Decorative Walls
✔ Green Building Projects

FEATURES / BENEFITS

Single component, just add water
High strength, polymer modified
Economical & Easy to use
Can be used up to a maximum of 12 mm bed thickness.
Bonds to various substrates
Exceeds ANSI A118.4 shear bond strength requirements
Complies with EN / ISO with a C2TE classification.
Exceeds IS 15477:2019 – Type3 T Adhesive standards.
Water and shock resistant.
Low VOC

SUBSTRATES

Concrete & Concrete Masonry
VDF/Tremix Concrete
Cement Mortar Beds
Cement Plaster
Ceramic tile, Vitrified Tile and Natural Stone
Glass mosaic tile
Brick Masonry
Cement Backer Board**
Cement Terrazzo
Calcium Silicate Board**
Gypsum Wallboard**

✅ **Consult the backer board manufacturer's data sheet for the specific board's specific recommendations and load bearing capacity.

Performance Properties:
UNITED-66 Glass Mosiac Adhesive mixed with Water

Applicable Standards:
ANSI A118.4; EN 12004 & ISO 13007; IS15477:2019

ANSI Data

Property : Test method	Requirement	Typical Values
Open time (30 Minutes at 28 days): ANSI A118.4 Clause – 5.3	75 psi (0.50 Mpa)	120 psi – 140 psi (0.82 – 0.96 Mpa)
Sag: ANSI A118.4- Clause 6.0	0.02 Inches (0.50 mm)	0.012 – 0.016 Inches (0.30-0.40 mm)

Glazed wall tile Shear Strength

7 Days: ANSI A118.4 – Clause 7.1.2	>300psi (2.07Mpa)	325-350 psi (2.23 Mpa-2.40 Mpa)
7 Days Water immersion: ANSI A118.4- Clause 7.1.3)	>200psi (1.38Mpa)	225-250 psi (1.54 Mpa-1.72 Mpa)

Porcelain Mosaic Tile Shear Strength

1 Day: ANSI A118.4 – Clause 7.2.2	>75psi (0.50Mpa	125 - 175 psi (0.86 – 1.20 Mpa)
7 Days: ANSI A118.4 – Clause 7.2.3	>200psi (1.38Mpa)	250 - 275 psi (1.72 – 1.89 Mpa
7 Days Water immersion: ANSI A118.4 – Clause 7.2.4	>150psi (1.03Mpa	200 - 250 psi (1.37 – 1.72 Mpa)
28 Days: ANSI A118.4 – Clause 7.2.5	>200psi (1. 38Mpa)	250 - 300 psi (1.72 – 2.06 Mpa)
28 Days: FreezeThaw cycling. ANSI A118.4 – Clause 7.2.5	>175psi (1.20Mpa)	225 - 275 psi (1.54 – 1.89 Mpa)
12 Weeks: ANSI A118.4 – Clause 7.2.7	>200psi (1.38Mpa)	250 - 300 psi (1.72 – 2.06 Mpa)

Quarry Tile Shear Strength

28 Days: ANSI A118.4 – Clause 7.3.2	>150psi (1.03Mpa)	200 - 250 psi (1.37 – 1.72 Mpa)
28 Days: FreezeThaw cycling. ANSI A118.4 – Clause 7.3.3	>100psi (0.69Mpa)	150 - 200 psi (1.03 – 1.37 Mpa)

The adhesive mortar conforms to ANSI A118.4ET

EN / ISO Data

Property: Test Method	Requirement	Typical Values
Open Time: EN 1346	0.50 N/mm²	0.75 – 1.00 N/mm²
Slip Resistance: EN 1308	0.50 mm	0.25 - 0.35 mm

Tensile Adhesion Strength

Initial: EN 1348 – Clause 8.2	1.00 N/mm²	1.25 – 1.50 N/mm²
After Water Immersion: EN 1348 - Clause 8.3	1.00 N/mm²	1.25 – 1.50 N/mm²
Heat Ageing: EN 1348 – Clause 8.4	1.00 N/mm²	1.00 – 1.25 N/mm²
Freeze- Thaw: EN 1348 – Clause 8.5	1.00 N/mm²	1.25 – 1.50 N/mm²

The adhesive mortar conforms to EN12004 / ISO 13007 as C2TES1

IS Data

Property : Test method	Requirement	Typi cal Values
	Tensile Adhesion
Dry Condition – Annex A (Clause 5.1)	Minimum 1.5 N/mm²	1.55-1.65 N/mm²
Wet Condition – Annex A (Clause 5.1)	Minimum 1.0 N/mm²	1.10-1.20 N/mm²

Shear Adhesion

Dry Condition – Annex B (Clause 5.2)	Minimum 1.5 N/mm²	1.60-1.70 N/mm²
Heat Ageing – Annex B (Clause 5.2)	Minimum 1.0 N/mm²	1.10-1.20 N/mm²
Wet Conditions – Annex B (Clause 5.2)	Minimum 1.0 N/mm²	1.15-1.25 N/mm²

Slip Resistance

Slip Resistance – Annex E (Clause 5.5)

≤0.5 mm

0.3-0.4 mm

Transverse Deformation

Transverse Deformation: (Clause 5.6)

2.5mm <5.00mm

2.55 mm - 2.65 mm

The Adhesive mortar conforms to IS 15477: 2019 - Type 3T Adhesive

Packaging:

20 kg bags

Color:

White

Coverage:

Approx. 80-100 Sqft. per 20 kg pack using (1-2mm x 6 mm) square notched trowel for a bed of 3mm

(Can be used up to a maximum bed thickness of 12 mm) Coverage will vary depending on trowel notch size, type and size of tile, and substrate smoothness and evenness.

Working Properties at 70° F (21° C)

UNITED-66 Glass Mosiac Adhesive mixed with water

Open Time	30 minutes
Adjustability Time	30 minutes
Pot Life	2.5 hours
Time to Heavy Traffic	16 - 24 hours
Time to Heavy Traffic	28 Days

Specifications are subject to change without notification. The results shown are typical but reflect the test procedures used. Actual field performance will depend on installation methods and site conditions

Surface Preparation:
All surfaces should be between 40° F(4°C) and 104° F(40°C) and structurally sound, clean and free of all dirt, oil, grease, loose peeling paint, laitance, concrete sealers or curing compounds

Check the surface to be true to plumb. All slabs must be plumb and accurate to within"" ""¼" (6mm) in 10 ft(3m). Rough or uneven concrete surfaces should be smooth.

Dry, dusty concrete slabs or masonry should be dampened and excess water must be swept off. Installation may be made on a damp surface. New concrete slabs shall be damp cured and 28* days old before application.

*No minimum cure time for concrete slabs when thin-set mortar is mixed with latex additive. Expansion joints shall be provided through the tile work from all construction or expansion joints in the substrate. Do not cover expansion joints with thin set mortar. Follow ANSI Specification AN-3.8 "Requirements for Expansion Joints"or TCA Detail EJ171 "Expansion Joints". For tile installation over Cement Backer Board: follow TCA installation details W244.

Mixing:

Place clean, potable water into a clean mixing bowl. Add LATICRETE® 325 High Flex powder into the mixing bowl. Use approximately 5.5 – 6L of water for 20 kg of powder.

Mix by hand or with a slow-speed mixer to a smooth, trowelable consistency. Allow adhesive to slake for 5 minutes. Adjust consistency if necessary

* Contact MYK LATICRETE technical services for large format tile or stone installations on exterior surfaces.

Designed especially for interior and exterior floor and wall installations of all types of ceramic tile, vitreous/vitrified, semivitreous tile, glass mosaic tiles, precast terrazzo, - and natural stones over concrete and on a variety of substrates. Good underwater shear bond allows this product to be used for wet areas like swimming pools, saunas, water bodies and washrooms. It be used for tile on tile applications & also as a slurry bond adhesive in wet on wet applications

a) Tile/Stone

Apply adhesive to the substrate with the flat side of the trowel, pressing firmly to work into surface. Comb on additional adhesive with the notched side. Use the proper sized notched trowel to ensure full bedding of the tile. Spread as much adhesive as can be covered with tile in 10 minutes. Back butter large format tiles (> 12"" "" x12"" "") to provide full bedding and firm support. Place tiles into the wet, sticky adhesive and beat in using a beating block and rubber mallet to imbed tile and adjust the level. Check adhesive for complete coverage by periodically removing a tile and inspecting bedding adhesive transfer onto the back of the tile. Use of MYK Laticrete spacers is APPLICATION: recommended to provide grout joints between tiles/stones. The joint width shall be as per the recommendation of the architect/engineer. Remove the spacers when the adhesive is set firm.
